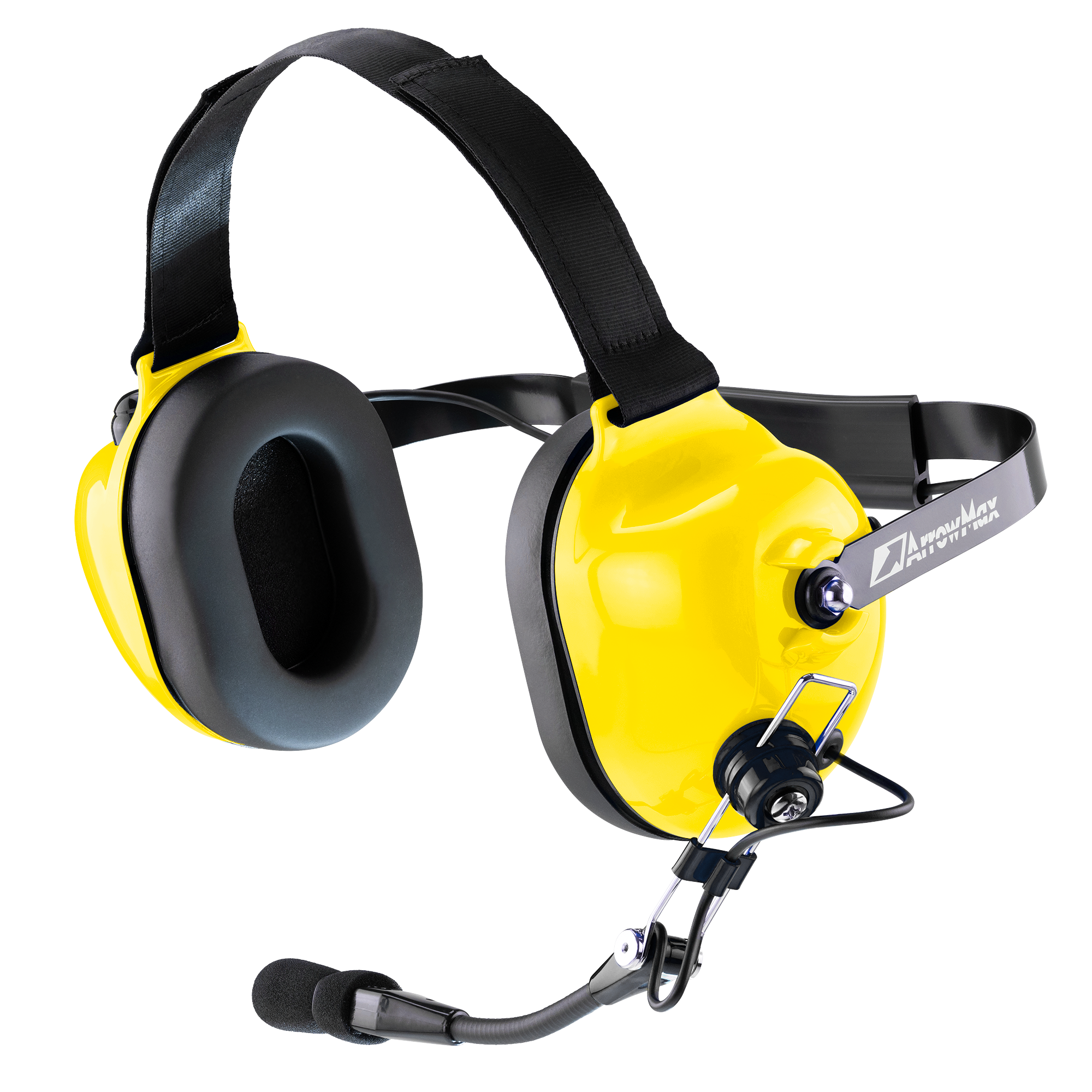

AHDH0032

Behind-the-Head Dual Muff Industrial Headset with Noise Isolation

$110.00 USD

SKU: AHDH0032-YW

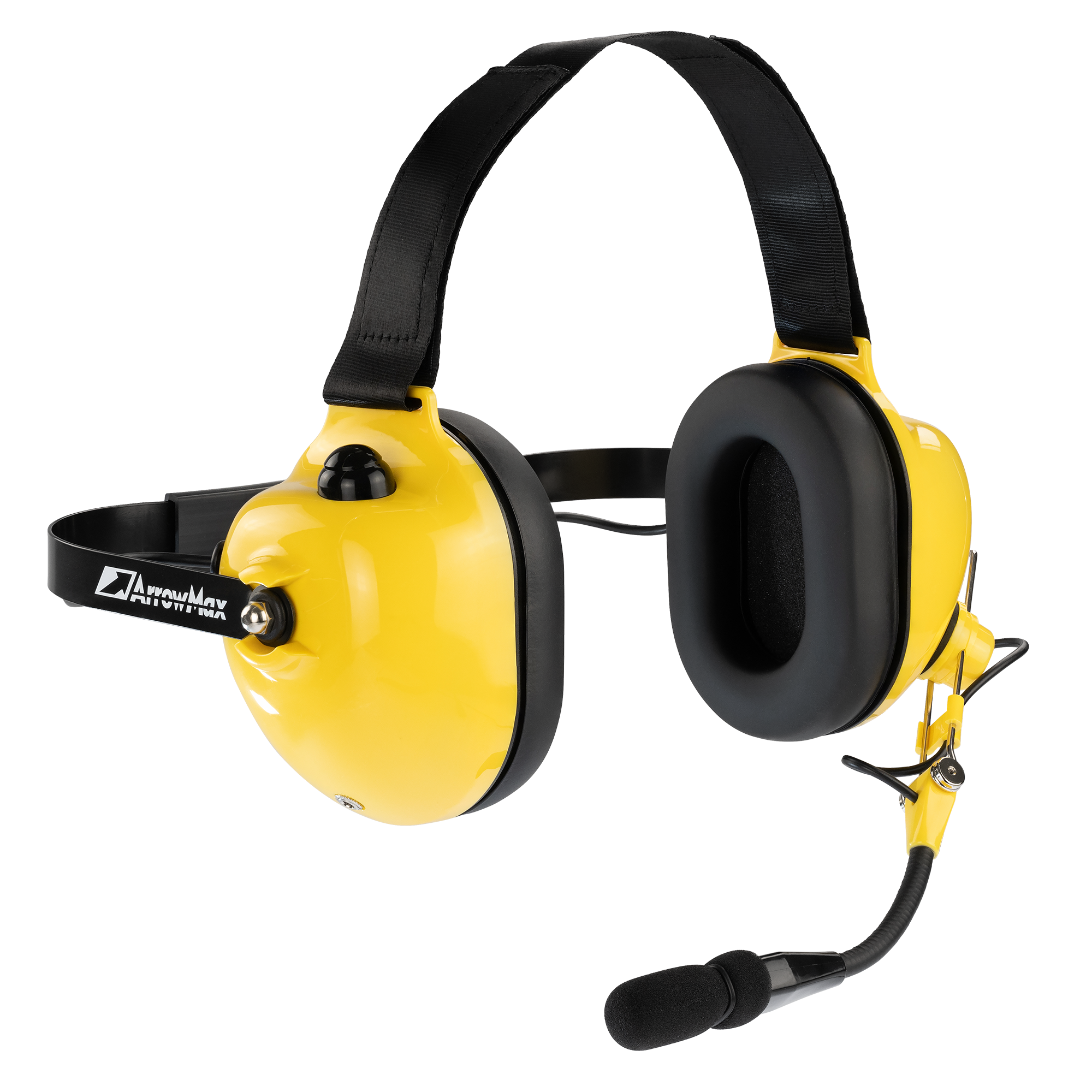

Color:Yellow

Variant

Quantity:

The AHDH0032 series is a heavy-duty passive noise reduction (PNR) headset, built for factory workers, construction teams, and professionals in high-noise environments. With 23dB of noise reduction, it offers dependable hearing protection while maintaining clear communication—making it a valuable tool for demanding industrial applications.

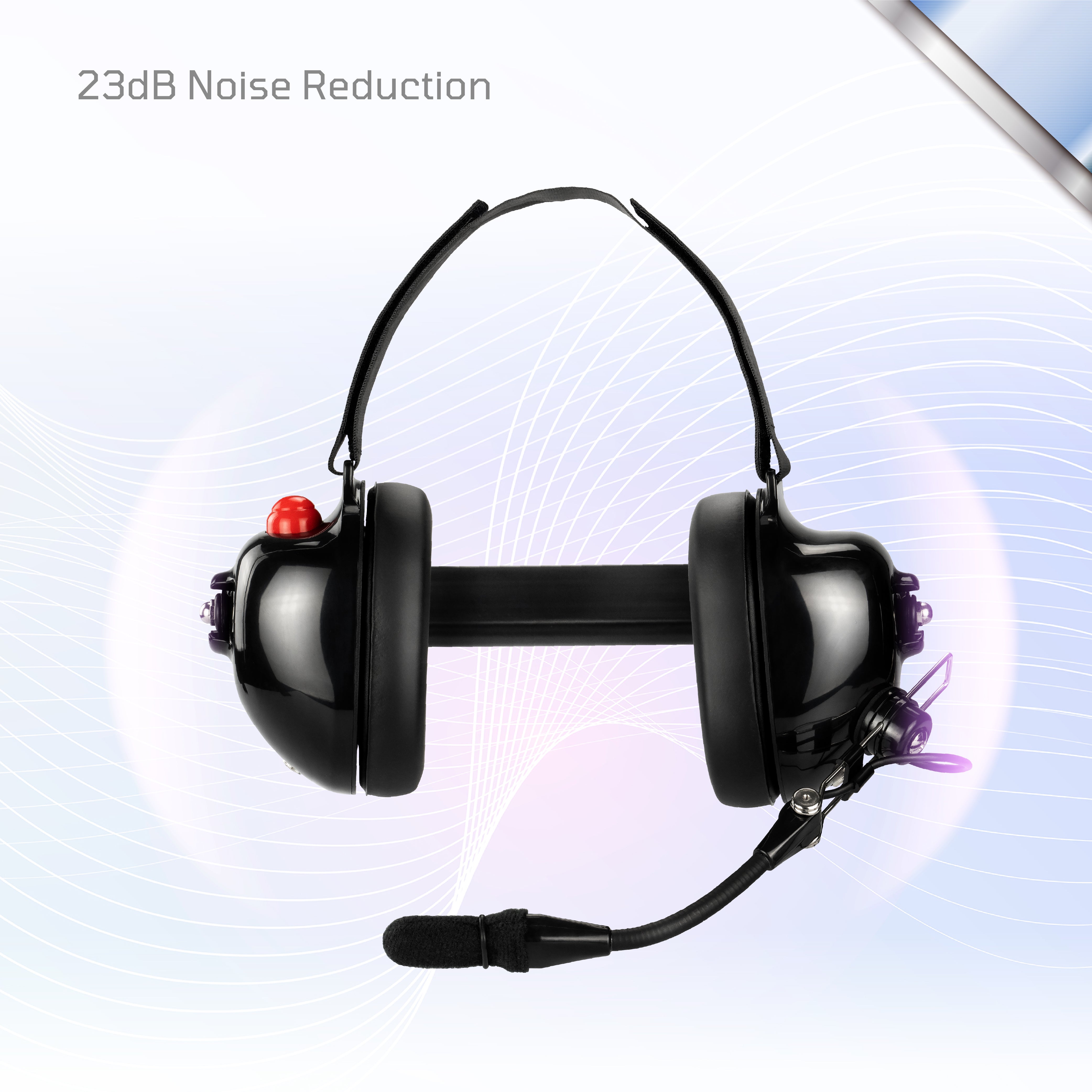

23dB Noise Reduction for Hearing Protection

Designed for loud workplaces, this headset significantly reduces background noise to help ensure safe, clear communication in factories, warehouses, or construction zones.

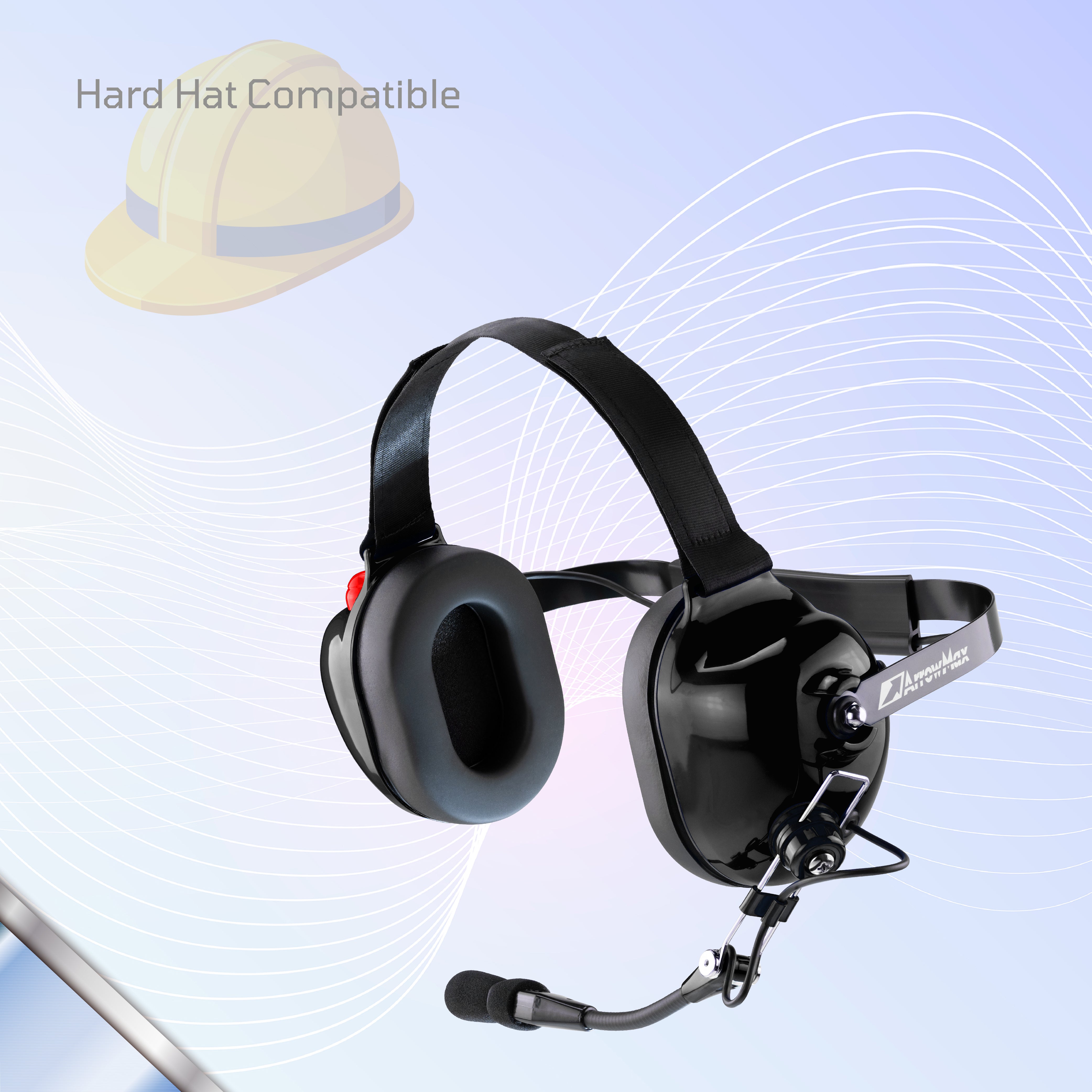

Comfortable Behind-the-Head Design (Hard Hat Compatible)

The behind-the-head band keeps the top of your head clear, making it fully compatible with most safety helmets and hard hats. Designed for a secure, comfortable fit even during long shifts.

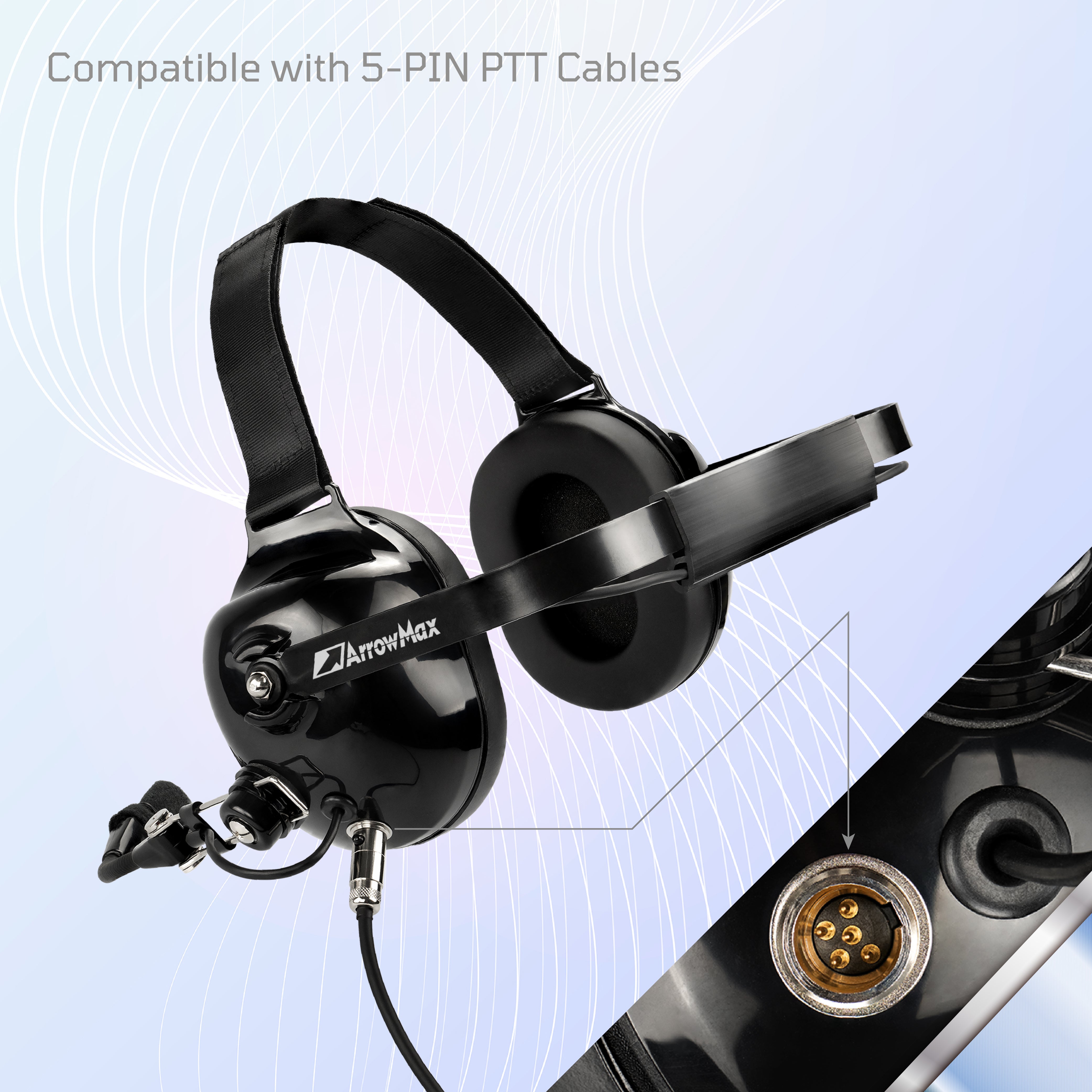

Compatible with 5-Pin Push-to-Talk Cables

Works with standard 5-pin communication cables, including the CABLE-AHDH00, CABLE-AHDH01PTT, and CABLE-AHDH02PTT. This allows effortless connection to various communication systems for enhanced versatility and convenience. (Cables sold separately.)

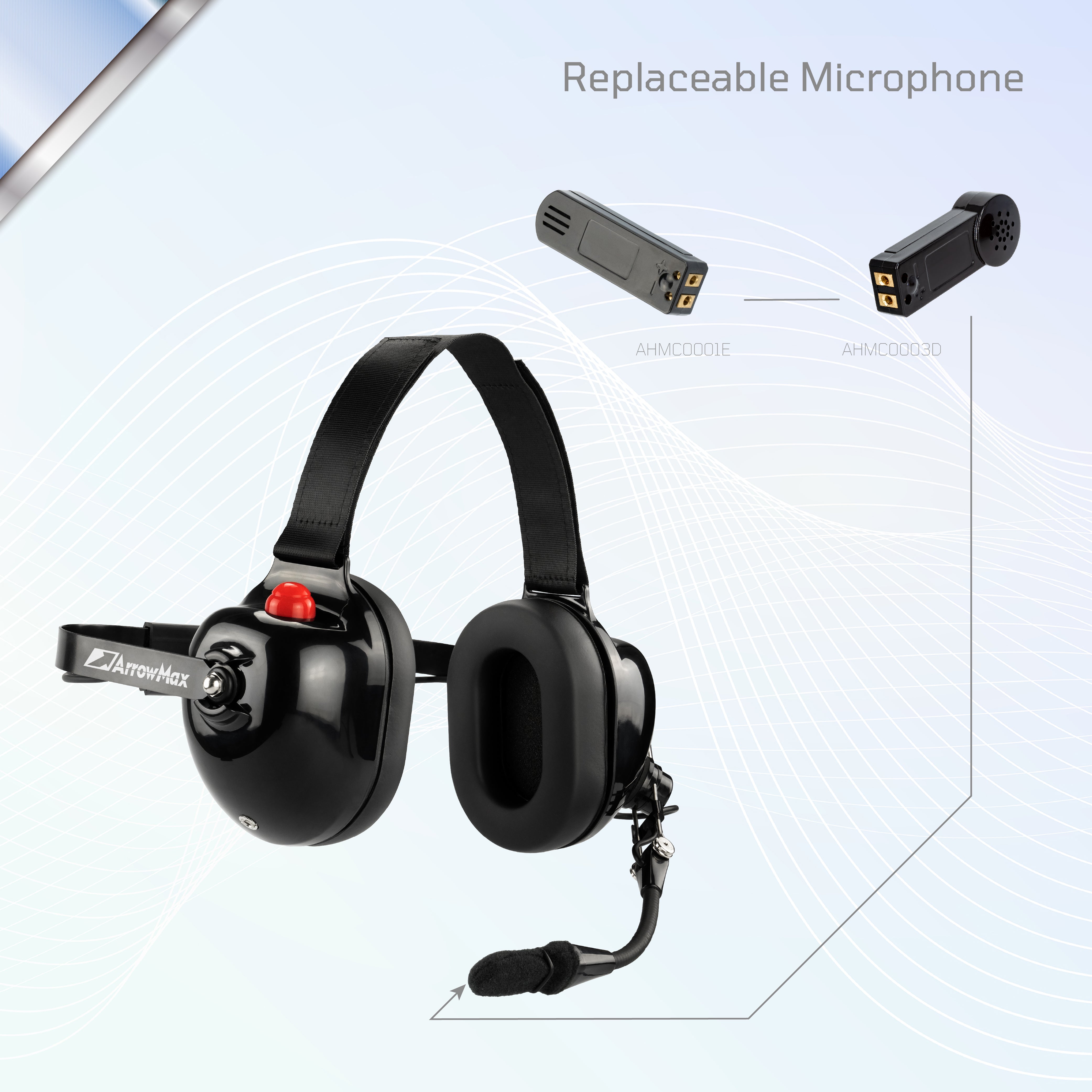

Replaceable Microphone Options

Easily replace the microphone with a few screws. Choose between the original Electric Microphone (part# AHMC0001E) or upgrade to the Dynamic Microphone (part# AHMC0003D) for improved clarity in high-noise environments.

Summary
	AHDH0032$110.00 View details	AHDH0033D$130.00 View details	AHDH0042$120.00 View details	ASH1042$120.00 View details
Color	YellowRedBlack	BlueRed	RedYellowBlack	—
NRR	23 dB (ANSI S3.19-1974)	23 dB (ANSI S3.19-1974)	24 dB (ANSI S3.19-1974)	23 dB (ANSI S3.19-1974)
Noise Reduction Method	PNR	PNR	PNR	PNR
Noise Cancelling MIC Type	Condenser	Dynamic	Condenser	Condenser
Style	Behind the Head	Behind the Head	Over the Head	Clip on Hardhat
Boom	Hybrid (Universal Flexible and Hinged Wire)	Hybrid (Universal Flexible and Hinged Wire)	Hybrid (Universal Flexible and Hinged Wire)	Hybrid (Universal Flexible and Hinged Wire)
PTT Switch Reliability	1,000,000	1,000,000	1,000,000	1,000,000
Speakers
Size	50	50	50	50
Impedance	32 Ω at 1 kHz	32 Ω at 1 kHz	32 Ω at 1 kHz	32 Ω at 1 kHz
Power Rating	Normal 30 mW (0.98 V RMS), Max 100 mW (1.79 V)	Normal 30 mW (0.98 V RMS), Max 100 mW (1.79 V)	Normal 30 mW (0.98 V RMS), Max 100 mW (1.79 V)	Normal 30 mW (0.98 V RMS), Max 100 mW (1.79 V)
Output Sound Pressure Level	116.0 - 119.0 dB SPL with IEC-318 at 1 mW (0.178 V), 1 kHz	116.0 - 119.0 dB SPL with IEC-318 at 1 mW (0.178 V), 1 kHz	116.0 - 119.0 dB SPL with IEC-318 at 1 mW (0.178 V), 1 kHz	116.0 - 119.0 dB SPL with IEC-318 at 1 mW (0.178 V), 1 kHz
Frequency Response	210 Hz - 5000 Hz	210 Hz - 5000 Hz	210 Hz - 5000 Hz	210 Hz - 5000 Hz
Microphone
Type	Noise Cancelling Condenser	Noise Cancelling Dynamic	Noise Cancelling Condenser	Noise Cancelling Condenser
Sensitivity	-47 ± 3 dB (at L = 50 mm)	-71 ± 3 dB (at L = 50 mm)	-47 ± 3 dB (at L = 50 mm)	-47 ± 3 dB (at L = 50 mm)
Sensitivity Reduction	-47 ± 3 dB (0 dB = 1.0 V/Pa, 1 kHz)	-71 ± 3 dB (0 dB = 1.0 V/Pa, 1 kHz)	-47 ± 3 dB (0 dB = 1.0 V/Pa, 1 kHz)	-47 ± 3 dB (0 dB = 1.0 V/Pa, 1 kHz)
Impedance	680 Ω (Low impedance)	150 Ω (Low Impedance)	680 Ω (Low Impedance)	680 Ω (Low Impedance)
Frequency Range	100 Hz - 16 kHz	400 Hz - 6000 Hz	100 Hz - 16 kHz	100Hz - 16KHz
Operation Voltage	1.0 V	1.0 V	1.0 V	1.0V
Signal-to-Noise Ratio	> 60 dB	> 60 dB	> 60 dB	> 60 dB
Connectivity
Plug	5-Pin Mini Chassis XLR Connector (Male)	5-Pin Mini Chassis XLR Connector (Male)	5-Pin Mini Chassis XLR Connector (Male)	5-Pin Mini Chassis XLR Connector (Male)
Jack	3.5mm input Jack for Scanner or other Device	3.5mm input Jack for Scanner or other Device	3.5mm input Jack for Scanner or other Device	3.5mm input Jack for Scanner or other Device
